The Independent Drainage System of Eko Atlantic City

During the design stage of Eko Atlantic City it was apparent that the road systems within the City would require an independent drainage network to ensure the proper evacuation of water off the road surfaces.

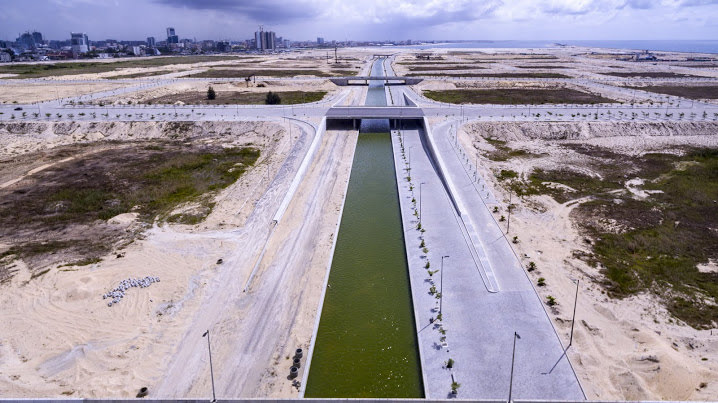

In order to be able to create an independent drainage network there needed to be a design for a canal system running throughout the middle of Eko Atlantic City. This canal system would receive all the water which flowed from the City’s roads into the underground drainage network. The solution conceived met all the criteria required for an independent drainage network. Absolutely none of the water collected in the City’s roads would flow into the existing drainage networks of Lekki and Victoria Island.

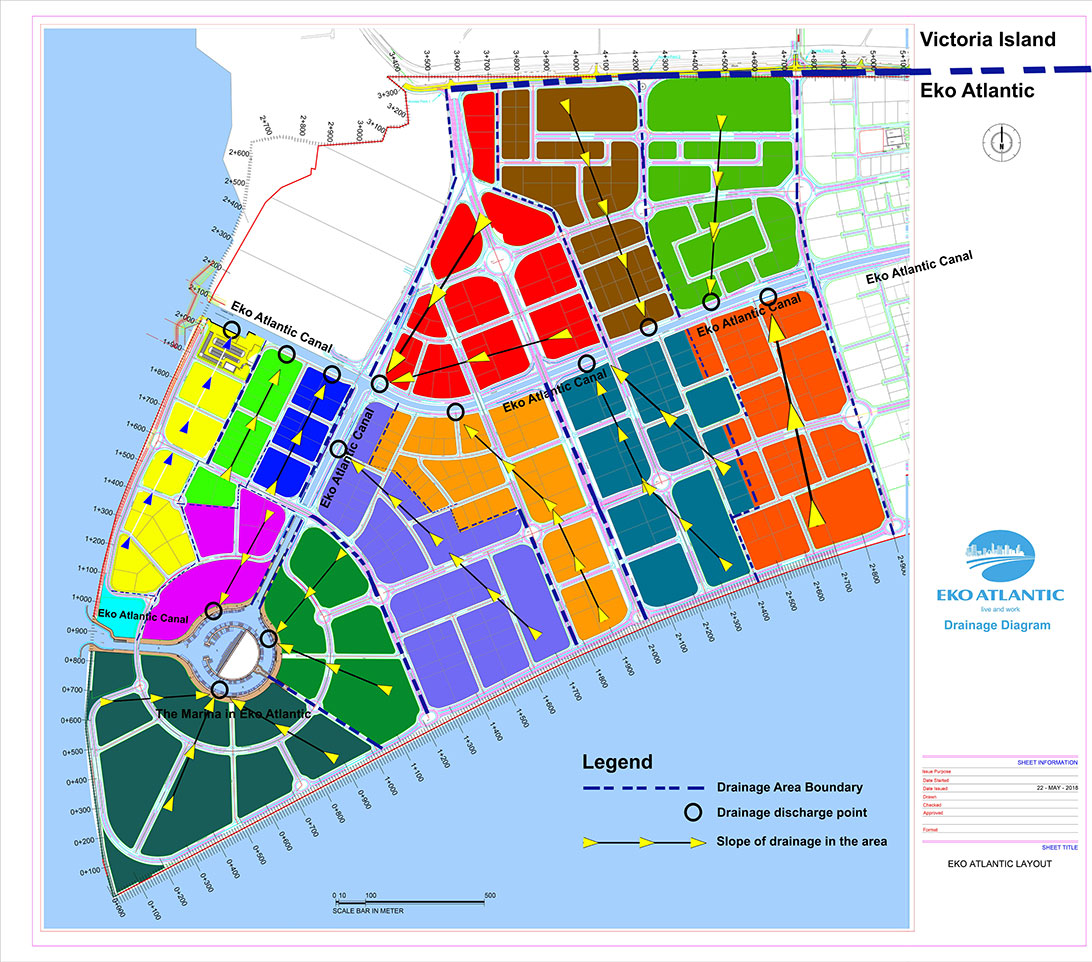

The diagram below depicts the flow of water throughout the different areas of the drainage system in Eko Atlantic to the different drainage discharge points in the Eko Atlantic Canal. At no point does the drainage network interact with Victoria Island.

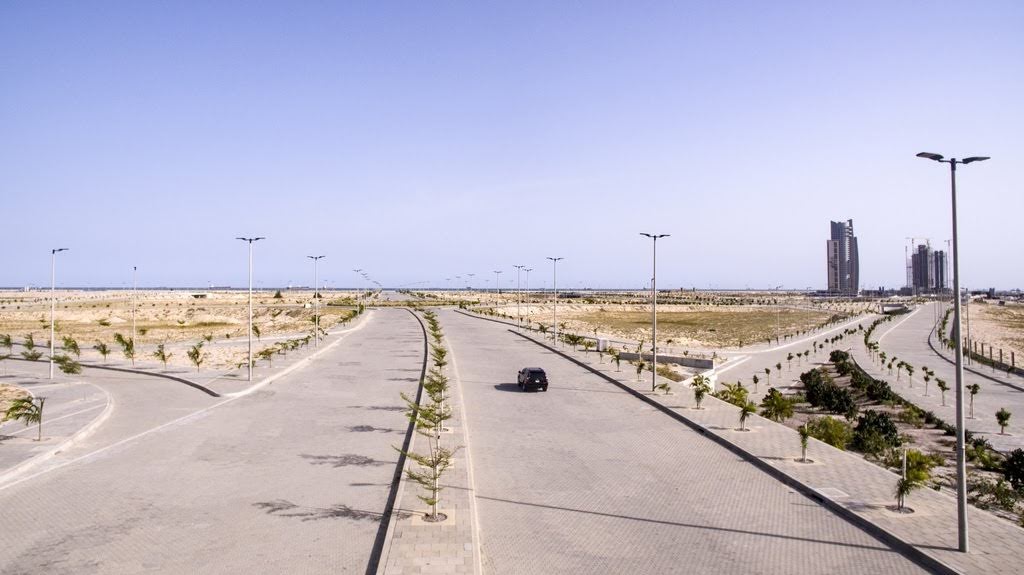

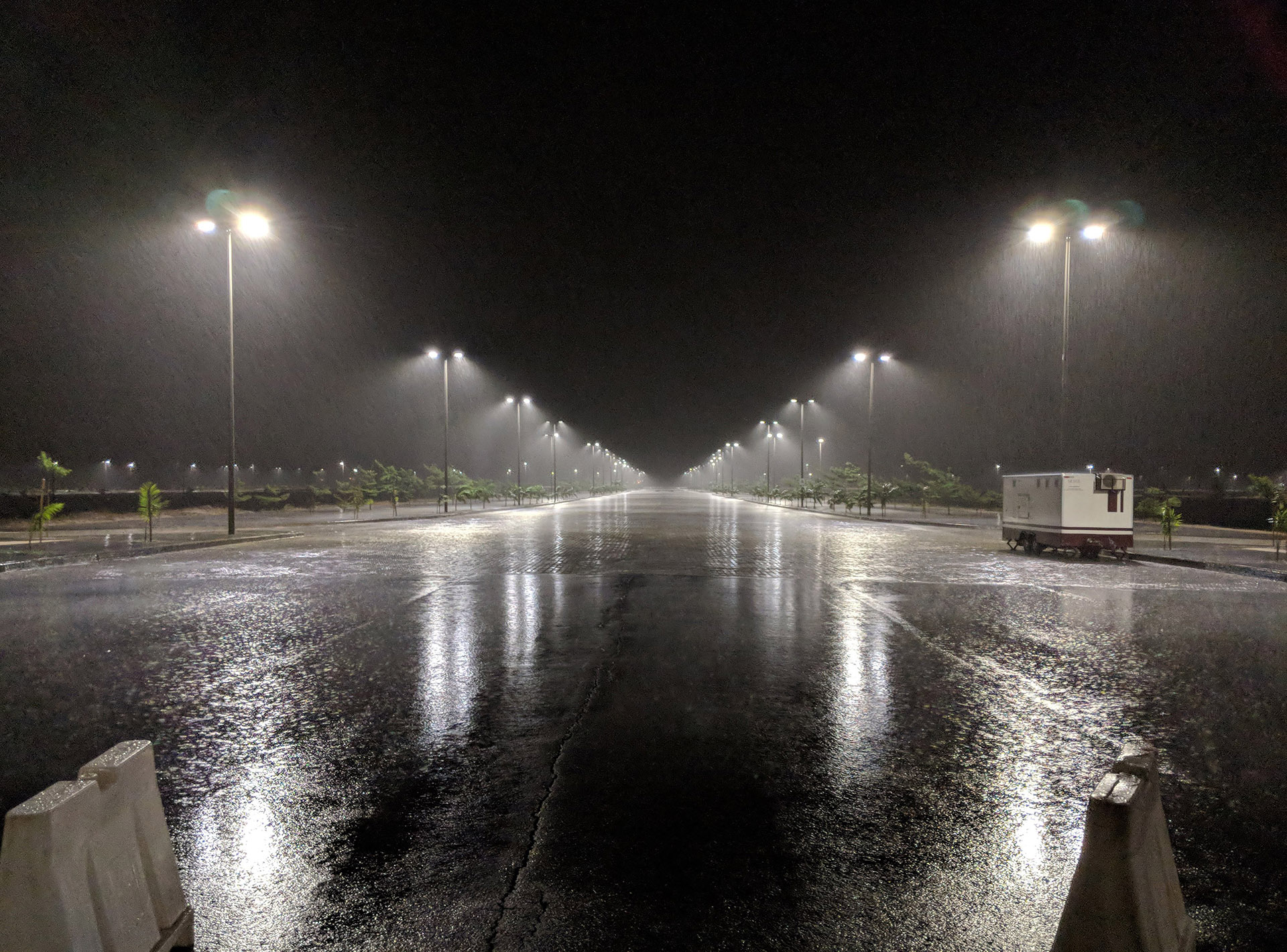

Today, the drainage network in Eko Atlantic is already proving to be effective. The road network in Eko Atlantic City has yet to be inundated by rain water even during heavy rain storms.

How the drainage network in Eko Atlantic City is built

Building the drainage network in Eko Atlantic City is a precise task which is repeated numerous times throughout the project.

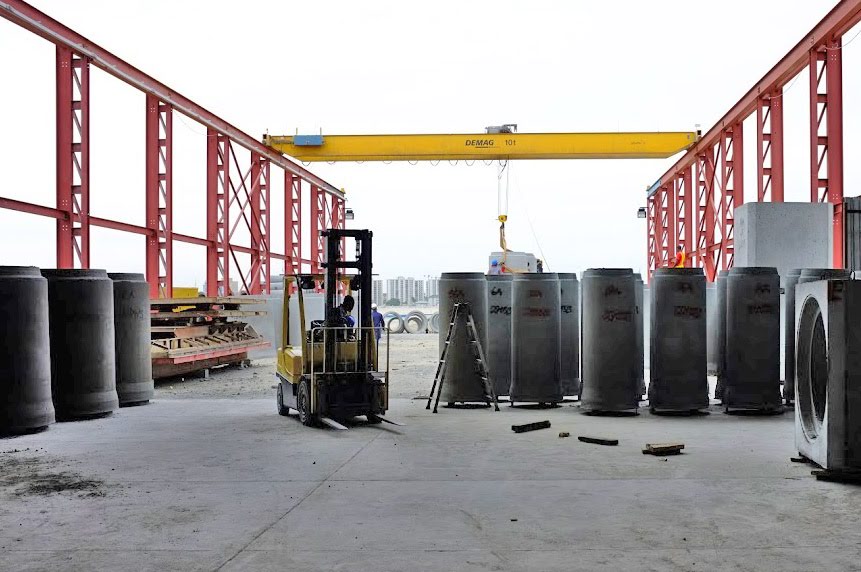

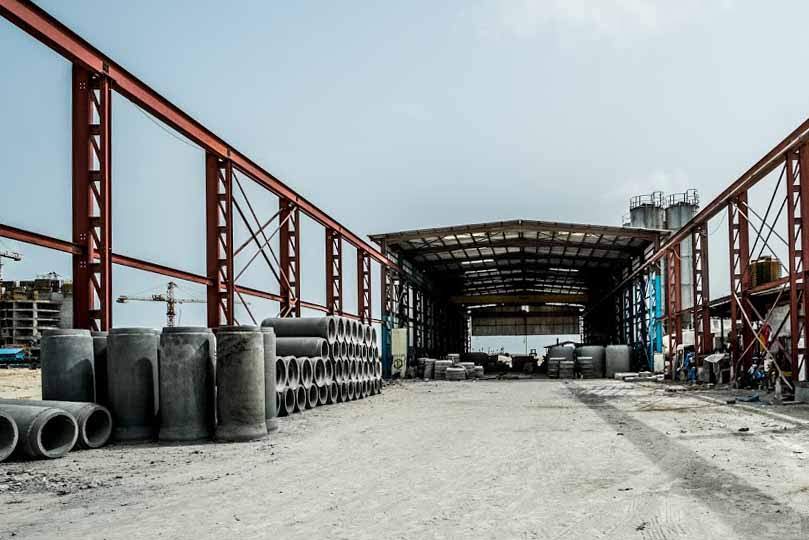

To begin, concrete pipes are fabricated in the pipe factory located in Eko Atlantic City. Storm water drainage pipes in the pipe factory vary in size from 30cm in diameter to the largest being 150cm in diameter. When the pipes come out from their mould they are left to cure for 3 weeks to allow the pipes to achieve full design strength.

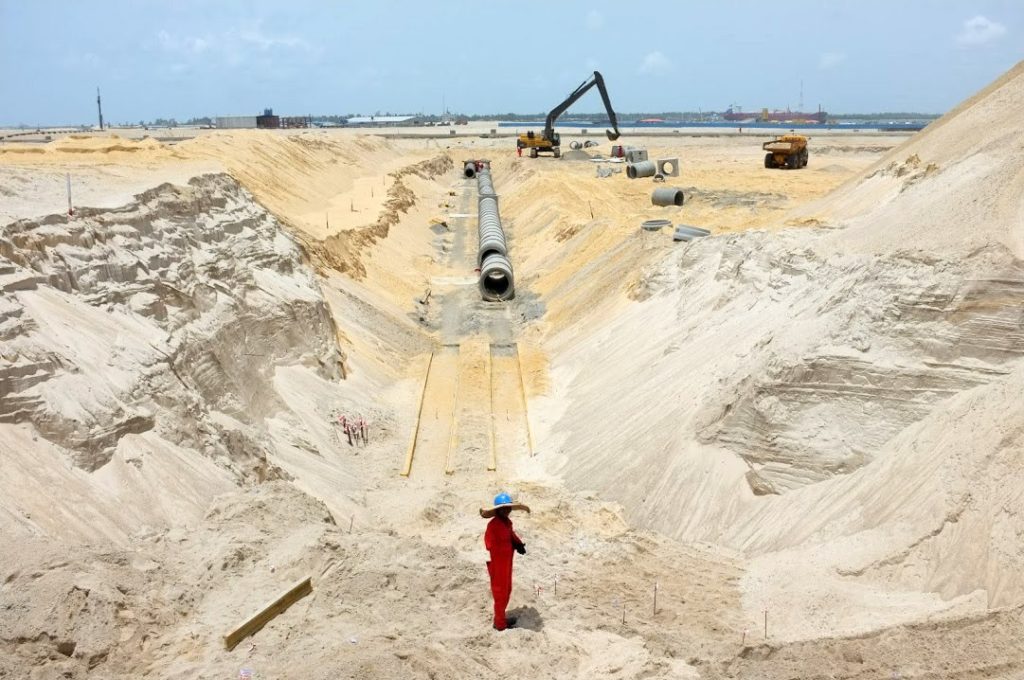

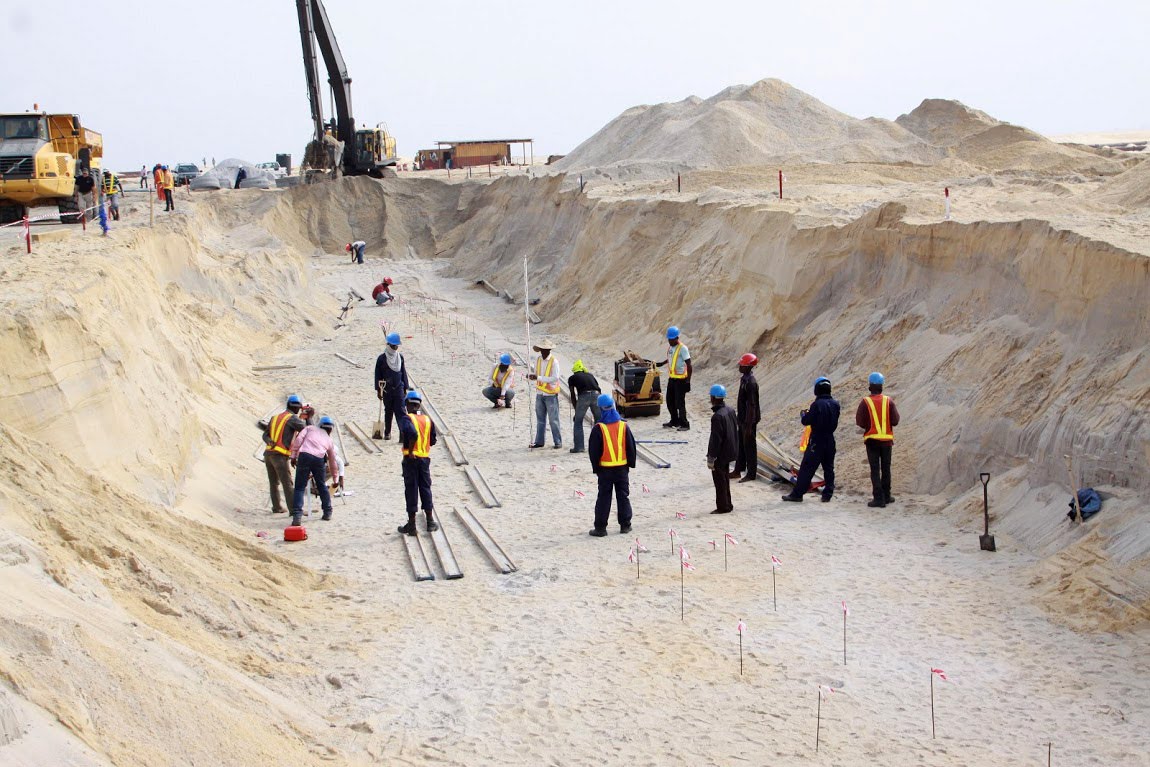

During this period, teams of surveyors are surveying the areas of installation, providing markers so that teams of excavators may dig trenches according to design levels of width and depth. Once the surveys are complete, and the excavator teams have dug trenches to design levels, a team of surveyors enter the trenches to install a set of iron pins which will indicate where the bottom of the pipe level will be.

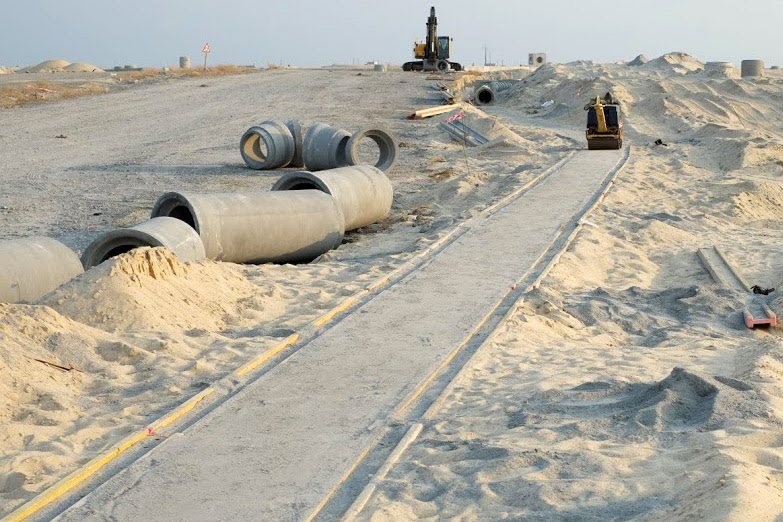

These pins allow for the installation of, “blinding”. The blinding is made up of a material consisting of a cement mixture and stone base, which, once compacted, creates a solid bed on which to install the drainage pipes. Blinding also ensures that the proper, “fall level”, or sloping of the drainage pipes, has been achieved.

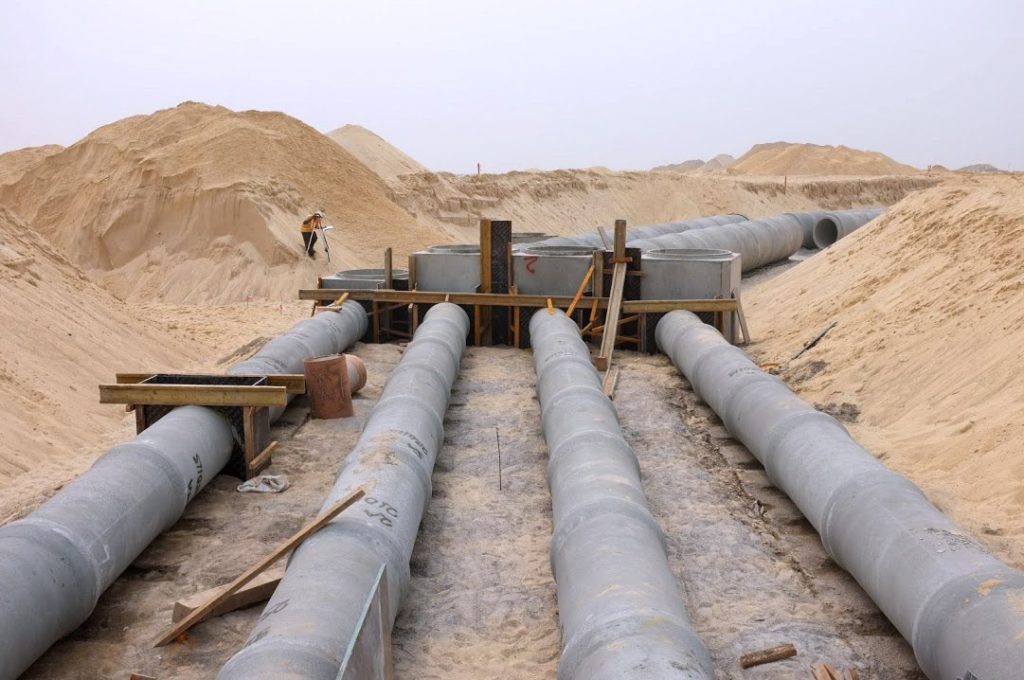

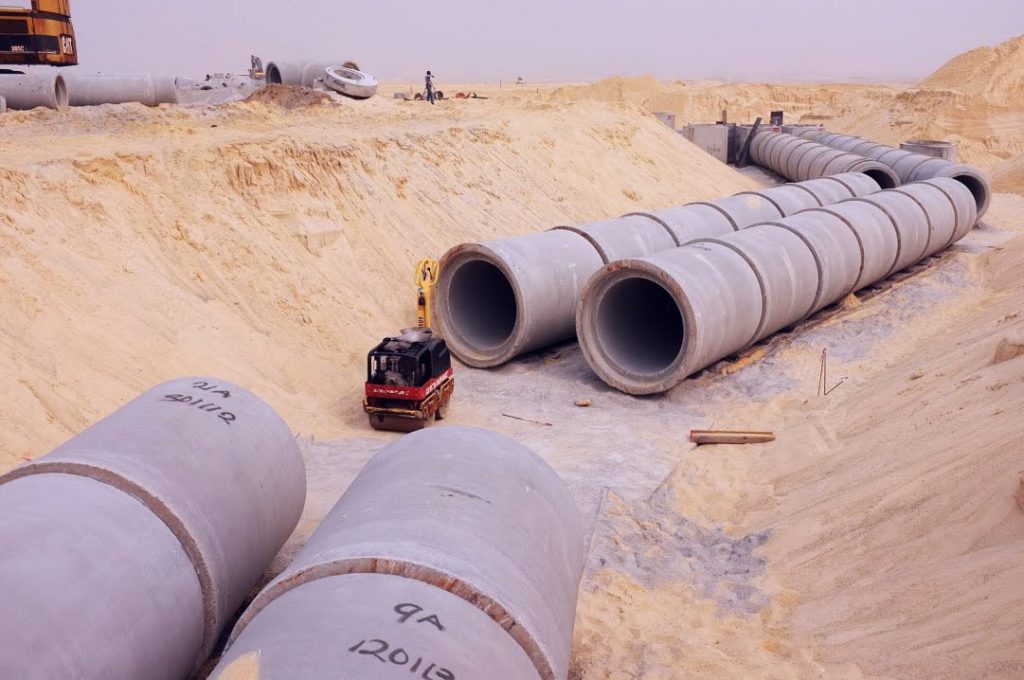

Once the trenches have been properly prepared with blinding, the installation of the concrete pipes takes place. Each pipe is laid down carefully using a team consisting of an excavator operator and four guides. Once a pipe is properly placed in the trench a rubber joint ring is installed where the pipe will adjoin with subsequent pipes to create a water tight seal. The excavator will then push one pipe into the other thus completing another small section of storm water drainage installation.

Once the pipes are properly installed in the trench the final stage of back filling in the area can occur. Sand is filled up to the halfway height of the pipes and then carefully compacted. The next level of sand is filled up again and also compacted.

This process is repeated until the sand reaches street level. The compaction method is important so as to eliminate the chances of materials moving after installation is complete.

With the storm water drainage installation completed, road construction in that area may now commence. As the roads are built openings are installed at regular intervals along the kerb-line allowing for the flow of water to enter the underground drainage network. Storm-water collected in this manner flows via gravity and discharges into the Eko Atlantic City canal.

What is special about the drainage network in Eko Atlantic City

The technology and methodology used in designing and installing the storm water drainage network in Eko Atlantic City adheres to best practices used worldwide.

It is important to note that the storm water drainage system in Eko Atlantic City is completely below street level. There exist no open drains anywhere throughout the City.

Having an underground drainage network prevents the dumping of refuse, particularly plastic waste, into the drainage system and subsequently the canal. It should be noted that plastic waste is notorious for blockages and interruptions of flow of water in drainage networks. An underground drainage network also aids in the prevention of mosquito breeding sites.

From a design perspective, the advantage of having underground drainage allows for sidewalks to be built above the area where the drainage is installed. In addition to creating space for sidewalks, maintenance workers also have safe access to the drains as they are not working in the road. Further, when drainage maintenance is carried out, it does not obstruct the flow of road traffic.

Lastly, as Eko Atlantic City builds and installs its own pipes for the drainage network, the City is able to ensure quality control and standards for both the production and installation of pipes. The added benefit of having production space of pipes close to area of installation saves on delivery time and dramatically decreases the frequency of broken pipes during transportation.

Conclusion

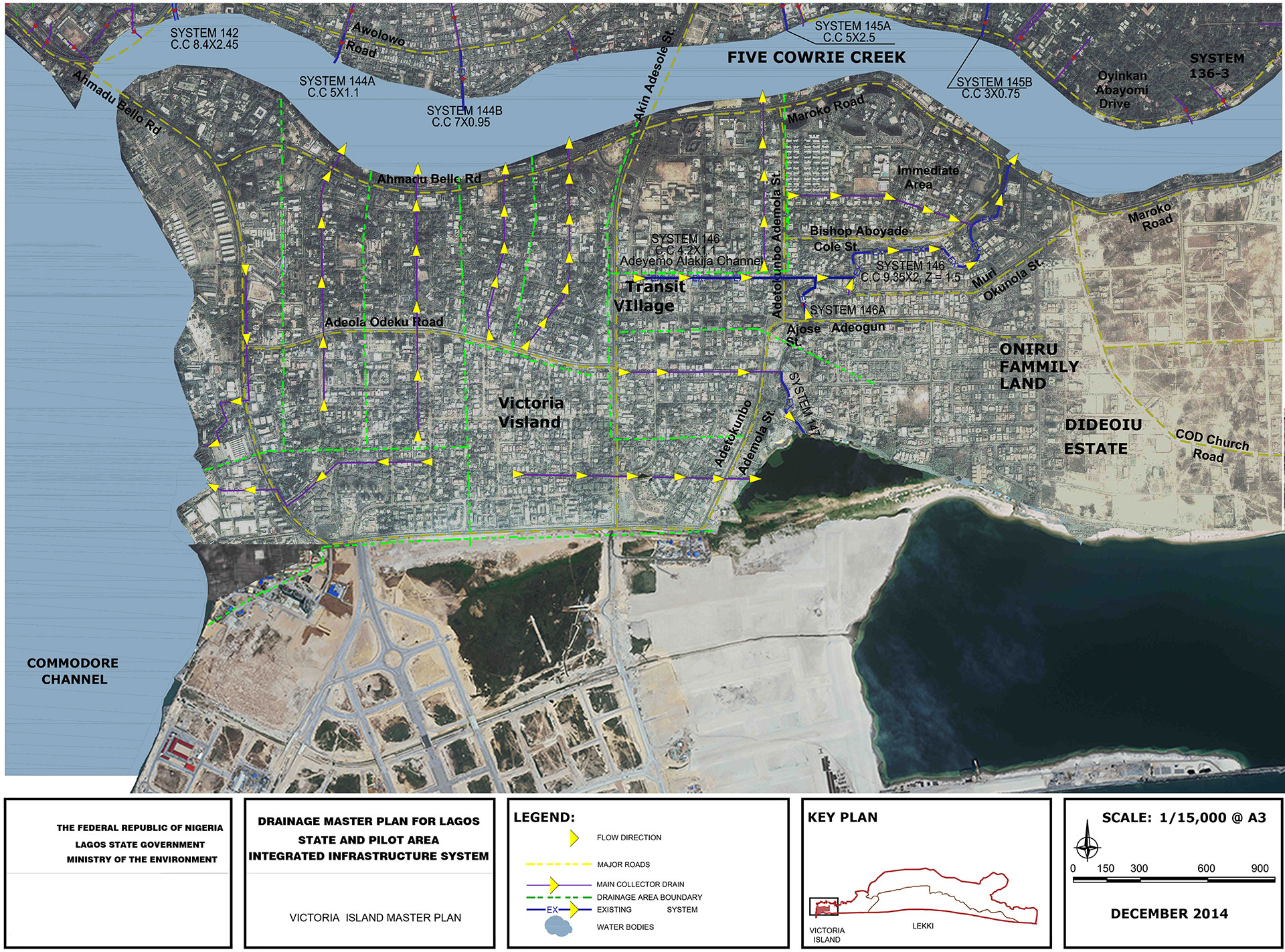

The series of drainage networks in Victoria Island are built to channel water from the South side of Victoria Island, being the border with Eko Atlantic, towards the North side of Victoria Island where the water exits into the Lagos Lagoon, the Commodore Channel, and Kuramo Waters.

Furthermore, the general topography of Victoria Island slopes towards Ikoyi, this is readily observed along Akin Adesola Road linking Ahmadu Bello Way to Ikoyi via Falomo Bridge; the slope is clearly discernible.

Eko Atlantic City has been designed to protect Victoria Island and the early phases of Lekki from coastal erosion and flooding due to ocean surges.
